Zhejiang Xinna Medical Device Technology Co., Ltd.

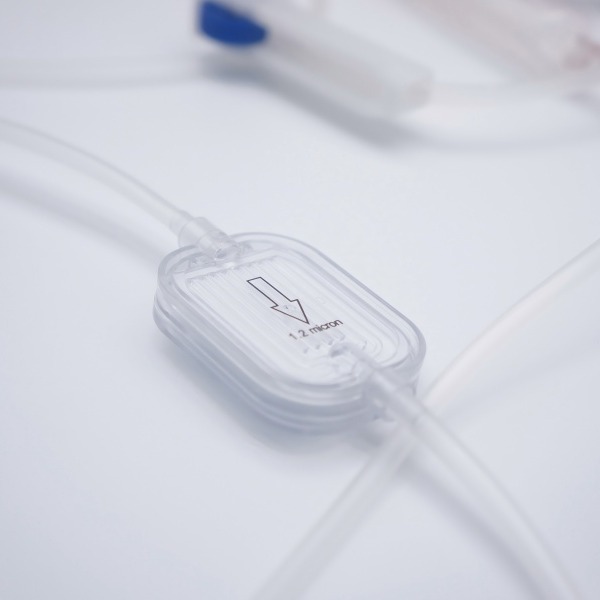

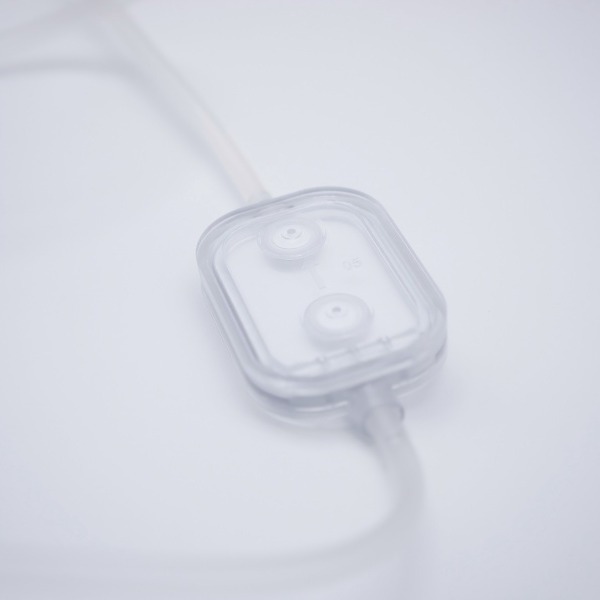

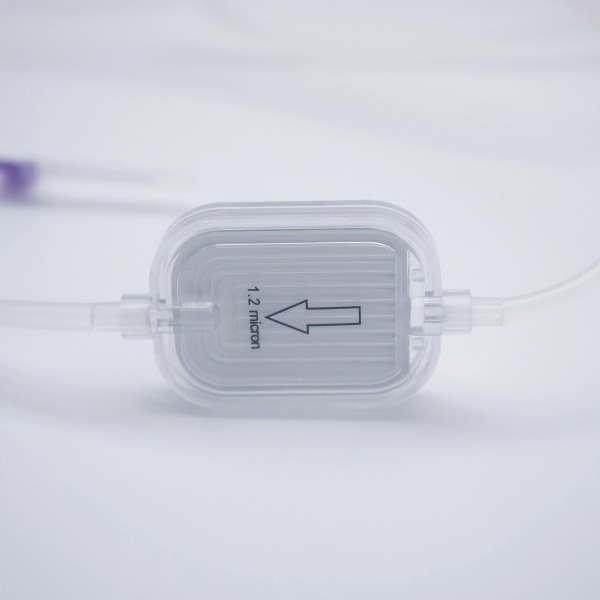

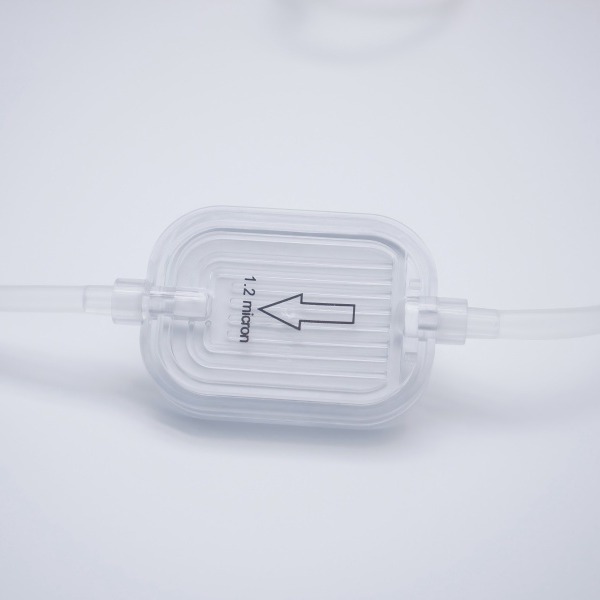

1.2 micron IV Filter for infusion therapy

جزئیات محصول:
محل منبع: چین
نام تجاری: OEM avaliable
گواهی: YY 0286.1 GB 8368-2018 ISO9001
شماره مدل: F33
پرداخت:
مقدار حداقل تعداد سفارش: 100000 عدد
قیمت: $0.15-$0.22 per piece
جزئیات بسته بندی: 750 عدد در هر بسته با برچسب، 4 بسته در هر کارتن یا قابل تنظیم
زمان تحویل: 30 روز
شرایط پرداخت: L/C، T/T
  • اطلاعات تکمیلی
  • توضیحات محصول

اطلاعات تکمیلی

نام محصول: یکبار مصرف 1.2 فیلتر میکرون IV جای فیلتر: ABS
اندازه منفذ: 1.2 میلی متر مواد متوسط: pes ، ptfe برای دریچه ها
ارتفاع مایع را متوقف کنید: ≥1.5 متر حالت مونتاژ: ذوب حرارتی یا جوشکاری اولتراسونیک
عقیم سازی: غیر استریل/EOS نوع: اف، یکبار مصرف
مزیت: توقف خودکار مایعات رنگ: طبیعی و ضد نور قابل قبول است
سازگاری: سازگار با لوله استاندارد IV تضمین: سه سال
درخواست: ست تزریق کشور منشاء: چین
برجسته کردن:

1.2 micron,iv filter 1.2μm,infusion set

,

iv filter 1.2μm

,

infusion set

توضیحات محصول

IV Filter With Hydrophilic PES-pp 1.2μm and Hydrophobic PTFE 0.45μm for infusion set



F33 IV Filter is an air eliminating filter for the removal of inadvertent particulate debris and other components like incomplete mixing of drugs and entrained air in catheter which may be found in solutions intended for intravenous use. The filtration efficiency of the membrane and the overall design of the filter can impact the safety of drug delivery for human beings.



Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Range of pore size options
  • Automatic air-stop
  • Lightproof-colored housings for light sensitive drugs is available
  • Printing available for ease of product identification

Specifications:





Dimensions: 57*29.5*0.94mm(inlet/outlet connector included)
Weight: 5.7-5.8g
Filtration area: 6.0CM2
Venting area: 0.54CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 3.6bar(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Filtration rate: PES-PP 5.0μm ≥95%,
PES-PP 3.0/2.0/1.2μm ≥90%
Min water flow rate: PES-PP 1.2μm ≥500ml/10min@10kpa
PES-PP 2μm ≥600ml/10min@10kpa
PES-PP 3μm ≥800ml/10min@10kpa
PES-PP 5μm ≥1000ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)



Applications:

  • Filter is designed for use in filtration of intravenous for removal of particles larger than 1.2μm
  • Infusion set



Package&Label:



3000pcs/box, 4 inner PE bags with 750 pcs inside each. each bag is sealed separately and cushion between each other.
Each bag is labeled with information as following, different lots in one box are closed separately and labeled seperately to prevent.

1.2 micron IV Filter for infusion therapy 0
